Concrete Boom Pump

Description

Are you looking for high-performance concrete pump trucks that deliver faster pouring, lower fuel costs, and unmatched reliability? At SMAT Machinery, we engineer cutting-edge pump trucks designed to maximize productivity on any job site—from high-rise buildings to infrastructure projects. SMAT has standard concrete boom pump truck, concrete pump with mixer machine, mixer truck with boom pump. various options for your project.

Hot Sale

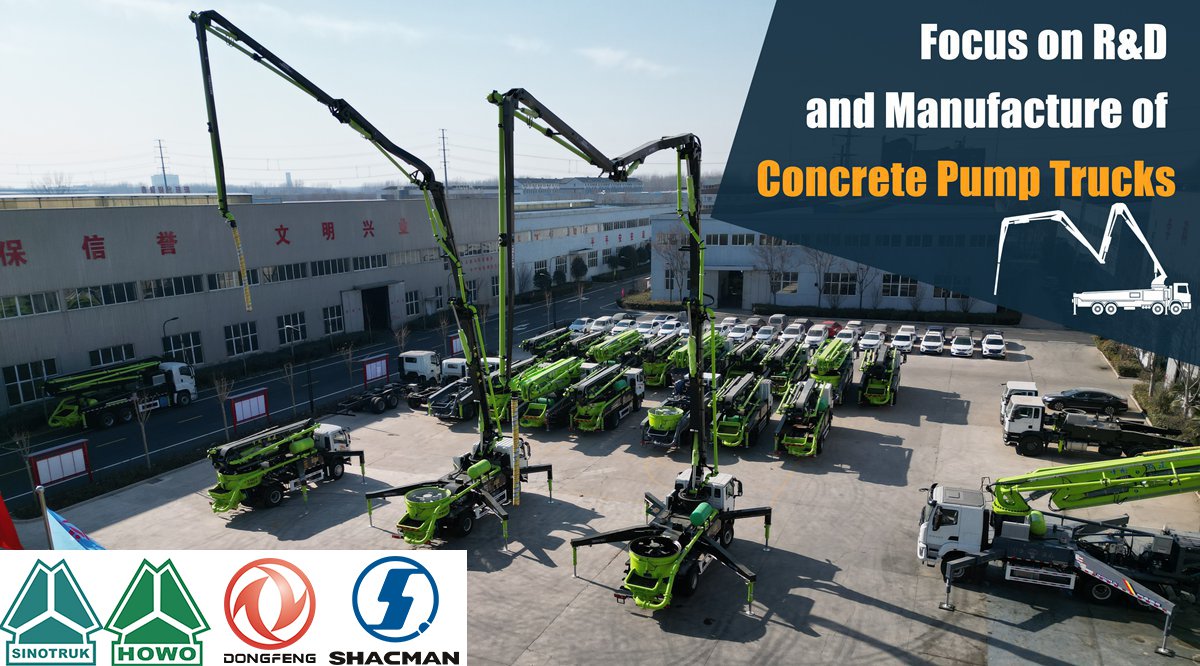

Concrete Boom Truck

Chassis Model: Howo/Dongfeng/Shacman/Sinotruck

Boom reach: 28-63 meters

360° full rotation capability

Concrete Boom Pump with Mixer

Integrated twin-shaft mixer (capacity: 6-9 m³)

Simultaneous mixing and pumping

Ideal for remote sites with limited concrete supply

Mixer Truck with Boom Pump

8-12 m³ transit mixer + boom pump

Continuous operation capability

Reduced equipment footprint on site

Specification

FULL LENGTH	9400mm	8200mm	10500mm	10450mm	12600mm	13850mm
TOTAL HEIGHT	3300mm	3260mm	3360mm	3800mm	3950mm	4000mm
TOTALWIDTH	2450mm	2350mm	2500mm	2500mm	2550mm	2550mm
SELF WEIGHT	16000Kg	17000Kg	26000Kg	23000Kg	35000Kg	44000Kg
BOOM VERTICAL HEIGHT	21.9m	26m	38m	40m	50m	62.5m
BOOM HORIZONTAL REACH	18.1m	21.6m	33.5m	36.2m	46m	58.5m
BOOM VERTICAL DEPTH	8m	10.5m	22m	24.5m	36.5m	47m
BOOM FOLDING	3Z	5RZ	5RZ	5RZ	6RZ	6RZ
EACH ARM LENGTH	7100mm/6100mm/4900mm	5500mm/4100mm/3900mm/3900mm/4300mm	7500mm/6200mm/6100mm/6700mm/6700mm	8100mm/6600mm/6000mm/7200mm/7600mm	10000mm/8250mm/8050mm/9450mm/5750mm/4300mm	11500mm/9030mm/9300mm/10270mm/11030mm/7500mm
EACH ARM CORNER ANGLE	90°/180°/180°	90°/180°/180°/212°/180°	90°/180°/180°/230°/212°	90°/180°/180°/207°/211°	90°/180°/180°/243°/220°/110°	90°/180°/180°/230°/180°/180°
END HOSE LENGTH	3m	3m	3m	3m	3m	3m
TURNTABLE ROTATIONANGLE	±360°	±360°	±360°	±360°	±360°	±360°
FRONT OUTRIGGER WIDTH	4850mm	5130mm	6800mm	8100mm	9500mm	12870mm
REAROUTRIGGERWIDTH	3300mm	5000mm	8350mm	9000mm	9800mm	12245mm
LONGITUDINAL DISTANCE OF FRONT AND REAR LEGS	5200mm	5100mm	6800mm	7400mm	10400mm	12347mm

SMAT Concrete Boom Pump Truck Configuration

The parts used in SMAT concrete pumps are all top brands. Only by strictly demanding every part and link, SMAT can deliver the most satisfactory machine to customers.

Boom System

Designed basedon accurate datasupport,strictcheckingofraw materials andwelding process. The multi-section articulated boom delivers concrete to precise locations. Made of high-strength steel, it offers flexibility and reach (up to 60+ meters), controlled via remote for accurate placement.

Outriggers

Stabilizing legs extend hydraulically to balance the truck during operation. They prevent tipping and ensure safety, especially when the boom is fully extended.

Truck Chassis

The heavy-duty chassis supports the entire system. Designed for mobility, it integrates the engine, cabin, and pumping components for on-site maneuverability. Various chassis brand optional for your requirement.

Pipeline System

The pump pipeline is a composite double. layer wearresistantconveying pipe,with the wear-resistantdegree reaching to 50000 cubic meters. Steel or rubber pipes transport concrete from the pump to the boom end. Sections are connected with quick-release clamps for easy assembly and cleaning.

Control System

Adopt German HBC controller to realize faultself-detection. Display alarm, solve problems quickly. Adopt modular design and easy installation. It can be customized according to engineering needs to improve the adaptability and flexibility of the equipment.In case machine parts fail, regional debugging can be used to solve the problem and avoid time costs.

Hopper

Latest design of internal structure, optimized the pump efficiency. Non-stick, easy clean. The receiving container stores fresh concrete before pumping. Agitators inside prevent segregation and ensure mix consistency during transfer.

Hydraulic Hose Connection

Hydraulic hosejoint offamousbrand, ensure the safety of hydraulicsystem and no leakage.

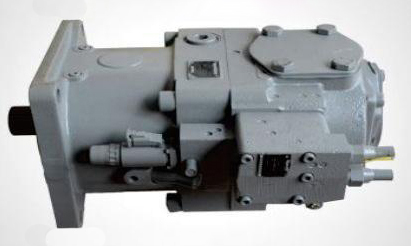

Main Oil Pump

Adopts Rexroth toensure the reliable operation system,reduces pump time and maintenance cost.Protect the dieselengine.

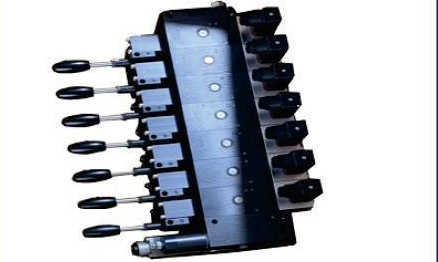

Boom And Outrigger Control Valve

Application of the electronic proportional control valve improves working efficiency through minimizing boom rolling and enlarge the flexibility of the boom andoutrigger functions at the same time.

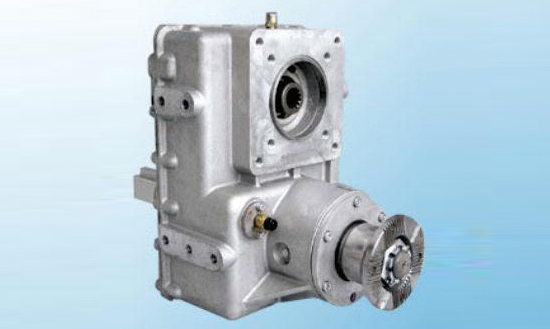

Transfer Case

lmported transfer case, reduce waste during system running.

Related Cases

Two Concrete Mixing Trucks for Guyana Customer



40m³/h Concrete Trailer Pump Feedback from Guyana Customer



Concrete Boom Pump 26M Shipping to Guyana



You May Need

SMAT provides varies concrete machines for your project.

Concrete Batching Plant



Advantage



Tested in the Market

SMAT was established in 1988. With good credit and high quality concrete pump machine, we have won a large number of customers. Our concrete pump have been tested in the market.



After-Sales Service

SMAT provides engineers with on-site installation guidance, commissioning, and training services. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.



Regular Visit

Every quarter we make a return visit to our customers. VIP groups are created for customers. If you have any questions, feel free to give feedback.



Advanced Technology

We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time.



Cooling System

The cooling system adopts a forced air-cooled radiator device to ensure that the working oil temperature is below 70 ℃, which ensures that the hydraulic system of the host is in normal working condition.



Stable Performance

Choose SMAT stable performance and high-quality concrete mixer pump, the failure rate is very low and the return rate is greatly improved. It can mix and deliver ready-mixed concrete quickly, saving time and labor costs. Ensure the proportion of concrete mixture accuracy in every batch, reducing the high cost of trial and error.



Intelligent Operation

Wireless remote control operation is more safe and more convenient for operators. With the automated control system as well as intelligent operation, it can save time for training.



Save Cost

For SMAT concrete mixer pump, less investment, higher quality concrete, which can help buyers take the investment back within a short time. Both reduce the impact on the environment and save costs.
